Product Description
ZowieBox, 4K HDMI Video Encoder/Decoder, NDI|HX3 Converter/Player
ZowieBox, a hardware HDMI encoder/decoder, is both a 4K video streaming codec and an NDI|HX3 Converter. It can standalone stream console gameplays such as PS5/4, Xbox, and Nintendo Switch PC-free, providing a flexible and affordable solution to stream high-quality videos over the internet!
4Kp60 Acceptable
Loop out up to 4Kp60, stream & record up to 4Kp30!
Stream and record console gameplay at 4K capture with zero-lag passthrough! 4Kp60 is acceptable!
Pads or Phones Control
Streaming settings can be configured by pads/phones via web browsers without capture cards!
Support RGB/YUV Input 1 Game Streaming Connection 2 HDMI Zero-Lag Passthrough 3 PC-Free Streaming 4 Pads or Phones Control 5 RGB/YUV

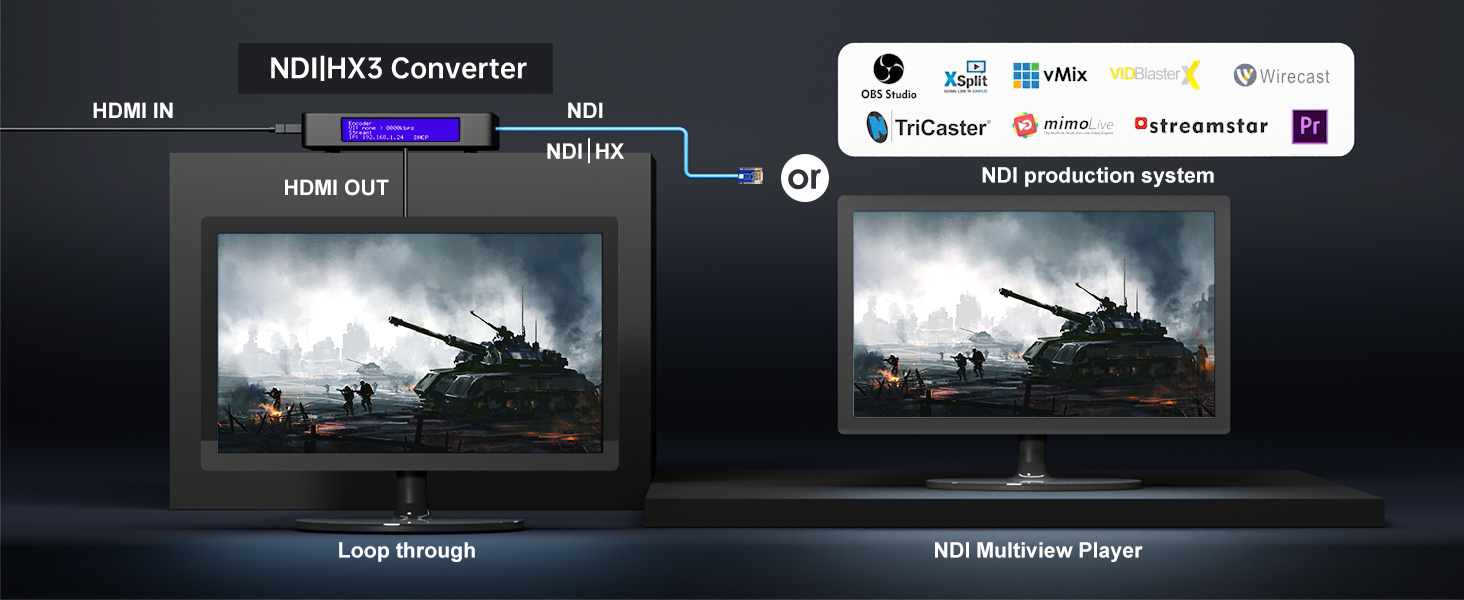

ZowieBox, 4K HDMI Video Encoder/Decoder, NDI|HX3 Converter/Player NDI|HX3 Converter
ZowieBox can encode one HDMI signal to NDI|HX3/HX2/HX(No full NDI, No NDI|HB) offering flexible and efficient video production workflows. It can also directly loop through HDMI signal to monitors.

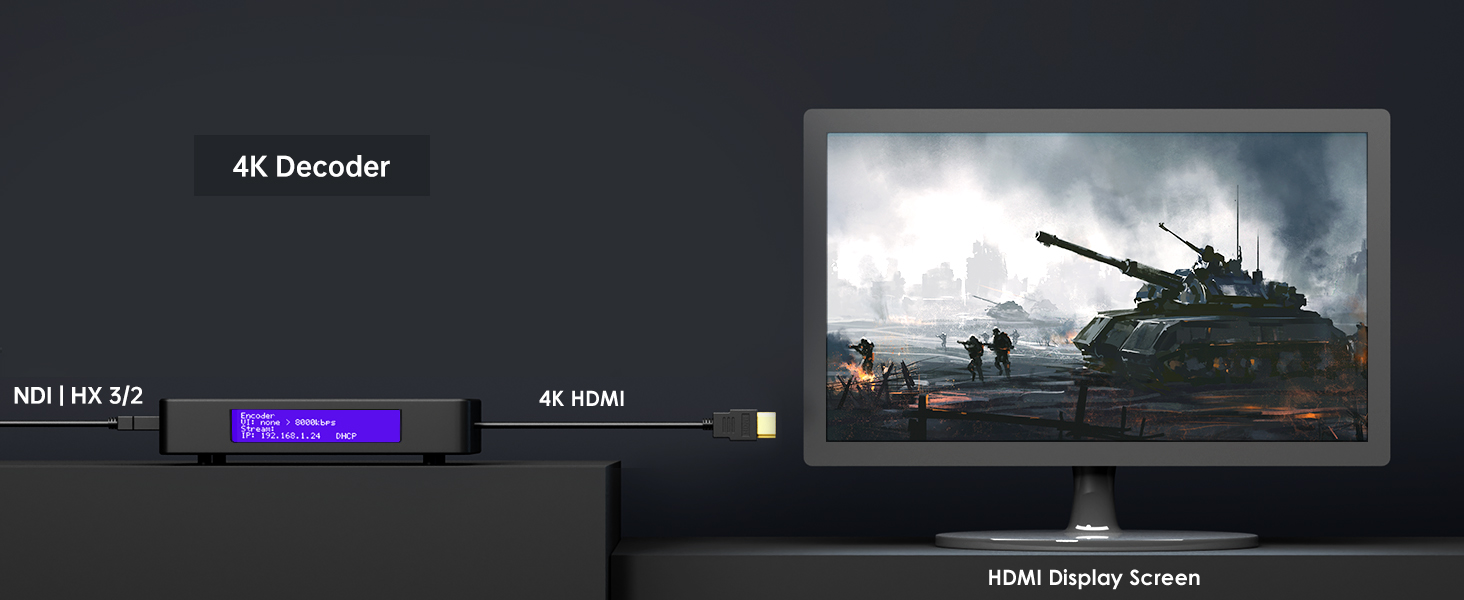

4K Decoder
ZowieBox can decode the NDI flow into 4K HDMI video signal (support NDI|HX3, NDI|HX2, NDI|HX, not support full NDI and NDI|HB).
Web UI Control
The web UI of ZowieBox enables users to preview videos, store streaming keys, switch between ZowieBox/PTZ, set A/V, OSD and encoder/decoder mode, upgrade new firmware, and restore to factory default.
HDCP
HDCP video signal can also be captured!
Applicable Scenes
Benefiting from the high-quality and ultra-low-latency of NDI| HX3, ZowieBox can be used in various scenes like live gaming, live shopping, online training, stage, and webinars.

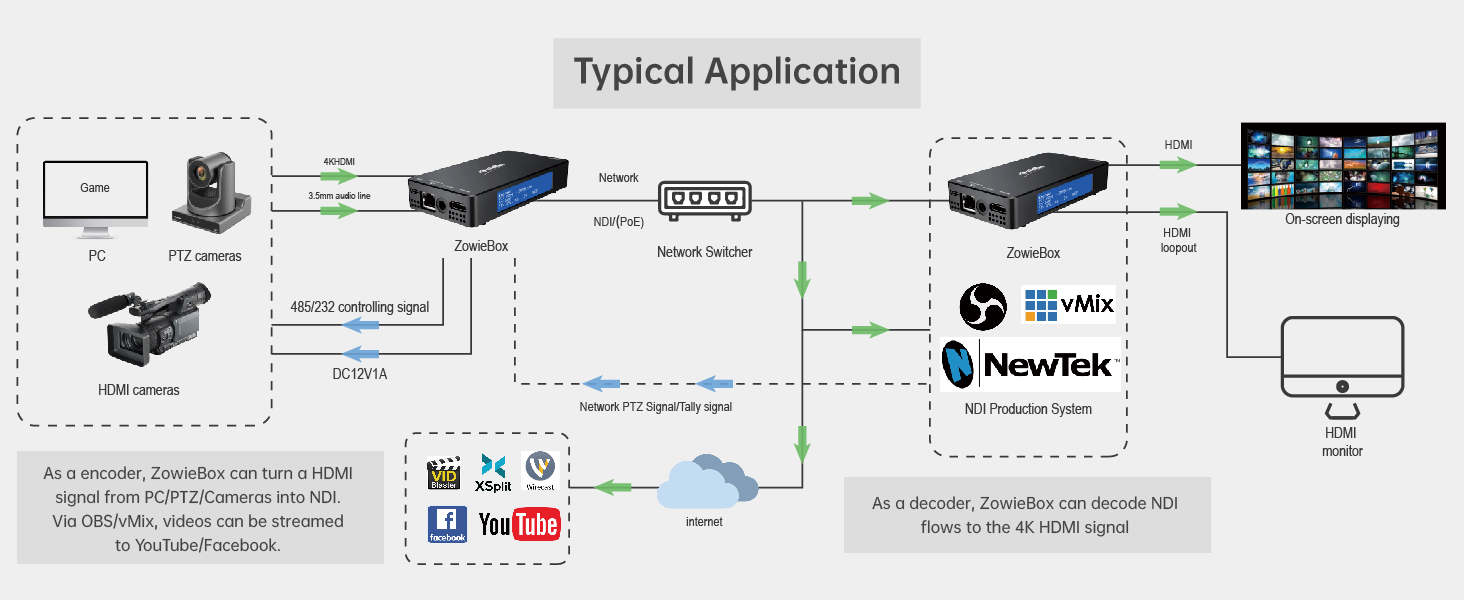

Typical Application
Note: It only supports NDI|HX3, NDI|HX2, and NDI|HX, but not supports full NDI and NDI|HB. Full NDI will consume too many network bandwidth resources.

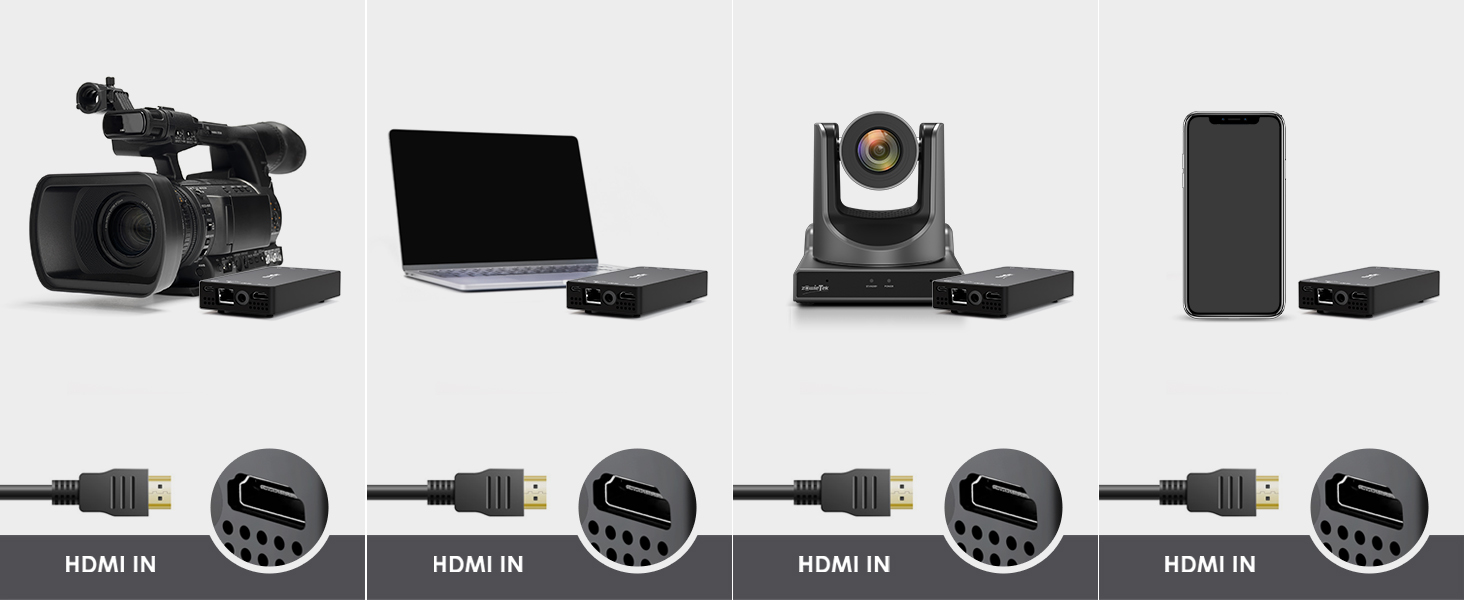

ZowieBox, 4K HDMI Video Encoder/Decoder, NDI|HX3 Converter/Player HDMI Extender Signal Sources
ZowieBox can accept the HDMI 4Kp60 signal from camcorders, PCs, PTZ cameras, and mobile phones. RGB/YUV/HDR color and HDCP video signal can also be captured!
PTZ control
ZowieBox can discover and connect with PTZ cameras like ZowiePTZ, and control its movement by PC, pads or phones.

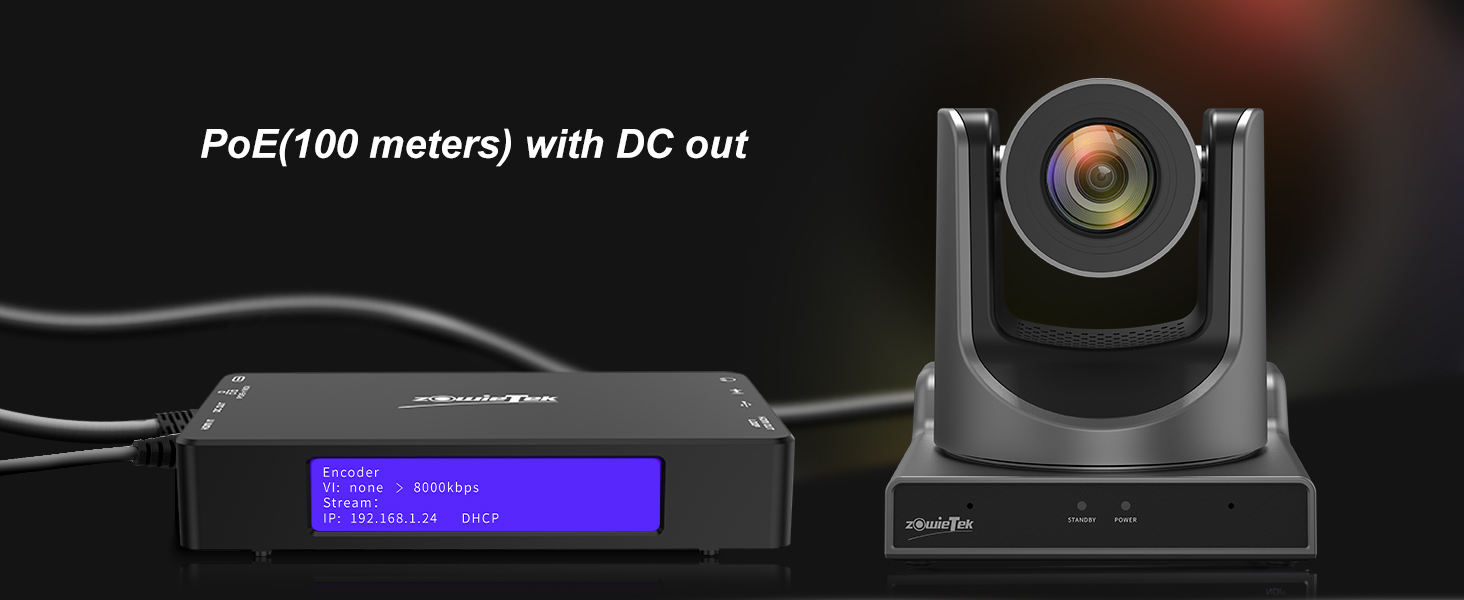

PoE with DC Out
ZowieBox supports PoE(power over ethernet), being powered by type-C chargers like power banks, and supports DC out to power PTZ cameras and monitors connected.

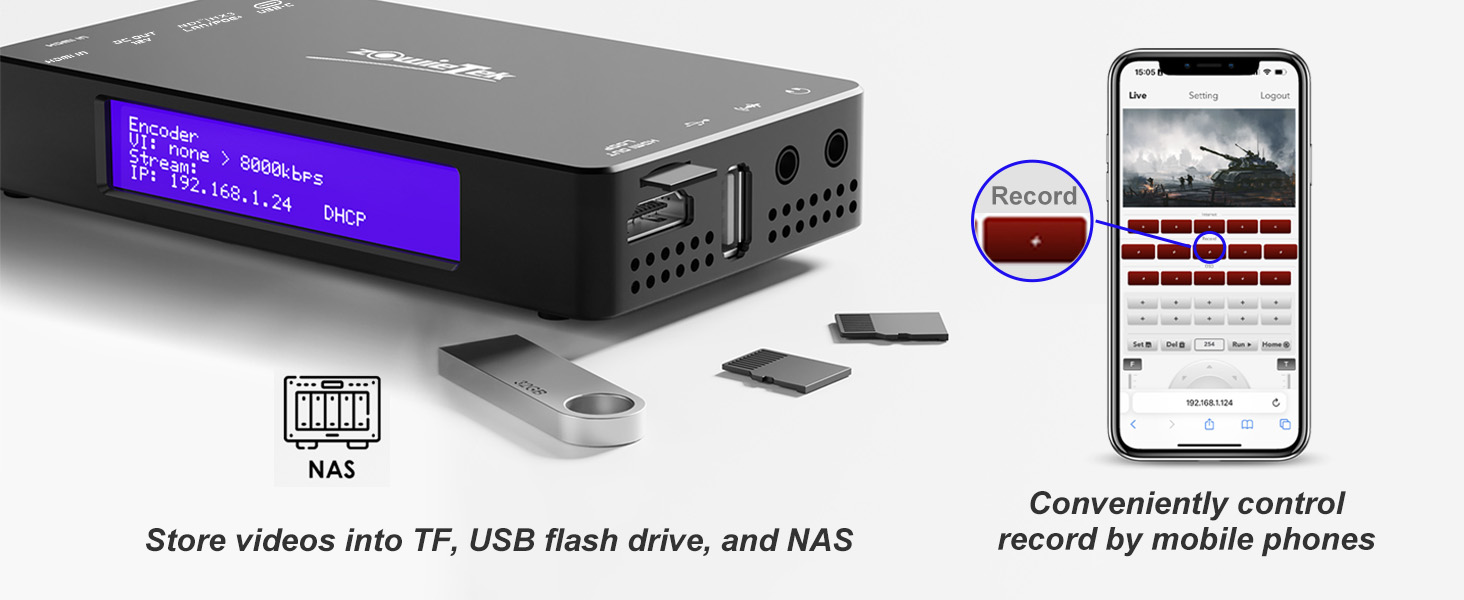

Record and Store
Videos can be recorded and stored on USB flash drives, TF cards, and NAS.
Rich Interface
Note: It only supports NDI|HX3, NDI|HX2, and NDI|HX, but not supports full NDI and NDI|HB. Full NDI will consume too many network bandwidth resources.
ZowieBox, 4K HDMI Video Encoder/Decoder, NDI|HX3 Converter/Player Built-in Tally
Built-in Tally can be set to auto or manual mode.
HDMI Embedded Audio
ZowieBox supports HDMI-embedded audio, line in and out.
Lightweight and Portable
Only 166g(5.9oz) and 123 x 68 x 22mm. It is smaller than phones and can be carried easily. Just put it in your bags or mount it on a standard tripod.
What’s in the Box?
ZowieBox*1, Cold shoe*1
USB type-C power adaper*1, USB-C cable*1
Quick start guide*1
Specification
Power Input: USB-C; PoE+(802.3at), CAT5e above. Output: 12V 1A DC Max Video Encoding format H.265 MP, H.264 HP/MP/BP Resolution 4K2160p25/30/60, 1080p25/30/50/60/120, 720p50/60 Live Preview Web, HDMI loop through and output Streaming In RTSP/RTMP(s)/SRT Streaming Out RTMP/SRT/RTP/UDP/RTSP *SRT caller only Bit Rate Max. 50mbits/s, adjustable NDI Encoder:NDI|HX3/HX2/HX; Decoder:NDI|HX3/HX2. Note: It not supports full NDI and NDI|HB. Full NDI will consume too much network bandwidth resources. Decoding format NDI|HX3/SRT/RTMP(s)/RTSP. Note: It not supports full NDI and NDI|HB. Full NDI will consume too much network bandwidth resources. Recorder mp4, mov, ts Audio HDMI Embedded audio or Line In/out by 3.5mm TRS Jack Tally Auto/Manual Mode OSD Text, Logo Caption, Time Stamp, Scoreboard, Picture Store TF card, USB flash drive, NAS Size 123 x 68 x 22mm(4.8″ x 2.7″ x 0.9″); 166g(5.9oz); Black aluminum Color Support RGB/YUV/HDR input
Do I need PC/OBS/vMix or other softwares to broadcast XBox and PS games via ZowieBox?
Three streaming ways
1.ZowieBox alone
2.Zowiebox turns HDMI into NDI— OBS/vMix receives NDI & pushes it to Youtube
3.OBS/vMix turns video signal into full NDI—NDI bridge turns full NDI into NDI|HX3/HX2/HX—ZowieBox receives it and pushes to Youtube
If I want to use OBS, how to get ZowieBox working in the OBS?
First, open the NDI of ZowieBox. Second, install and run the ‘NDI Tools’ APP. Then select the ‘NDI|HX’ signal from ZowieBox as the ‘Webcam Input’. Last, use OBS to add a ‘Video Capture Device’ source and select ‘ZowieBox’. Or OBS pulls RTSP from it.
Can ZowieBox support 4K zero-lag loop-through?
Yes. It can loop out 4K HDMI video signal with zero-lag. When accepting 4Kp60 HDMI signal, it can loop out 4Kp60, record and stream at 1080p60. When accepting 4Kp30 HDMI signal, it can loop out 4Kp30, record and stream at 4Kp30.
Can ZowieBox decode the RTMP/SRT streaming into HDMI signal?
Yes. It can be a decoder, decoding RTMP/SRT stream to the HDMI signal.
Can ZowieBox stream to multiple platforms simultaneously?
Yes, it supports streaming to 4 platforms simultaneously——2 rtmp streams and 2 srt streams
Product Dimensions : 6.81 x 2.21 x 12.29 cm; 166 g
Date First Available : 28 Aug. 2023
Manufacturer : Zowietek
ASIN : B0CGRZ9DQ2
Item model number : 30621-102
Country of origin : China
Guaranteed software updates until : unknown
Compact but Powerful: ZowieBox, smaller than phones, with a tally light and LCD screen showing streaming status, can stream and record console gameplays at 4K capture with zero-lag passthrough. The IP stream can be decoded into a 4K HDMI signal.

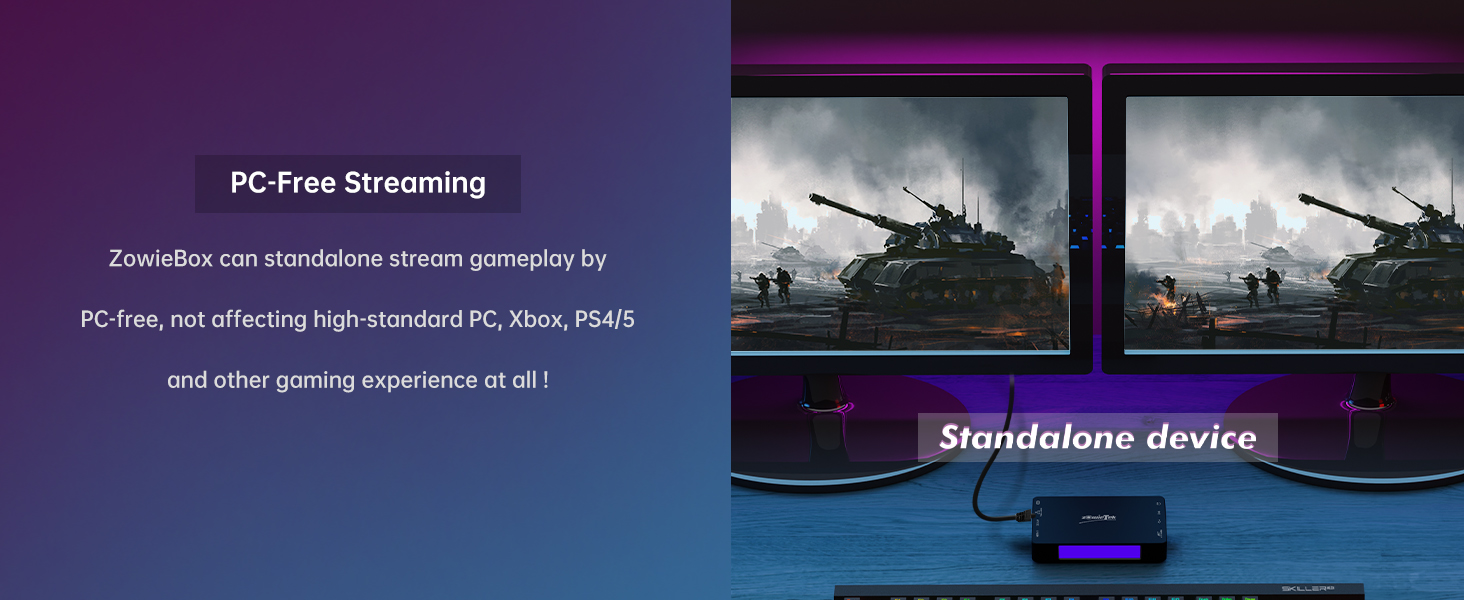

Standalone Game streaming: Just plug and play, ZowieBox can stream live gaming by PC-free, not affecting game experience at all ! It supports simultaneously streaming and recording up to 60fps and storing 4K videos into TF, USB flash drive and NAS.

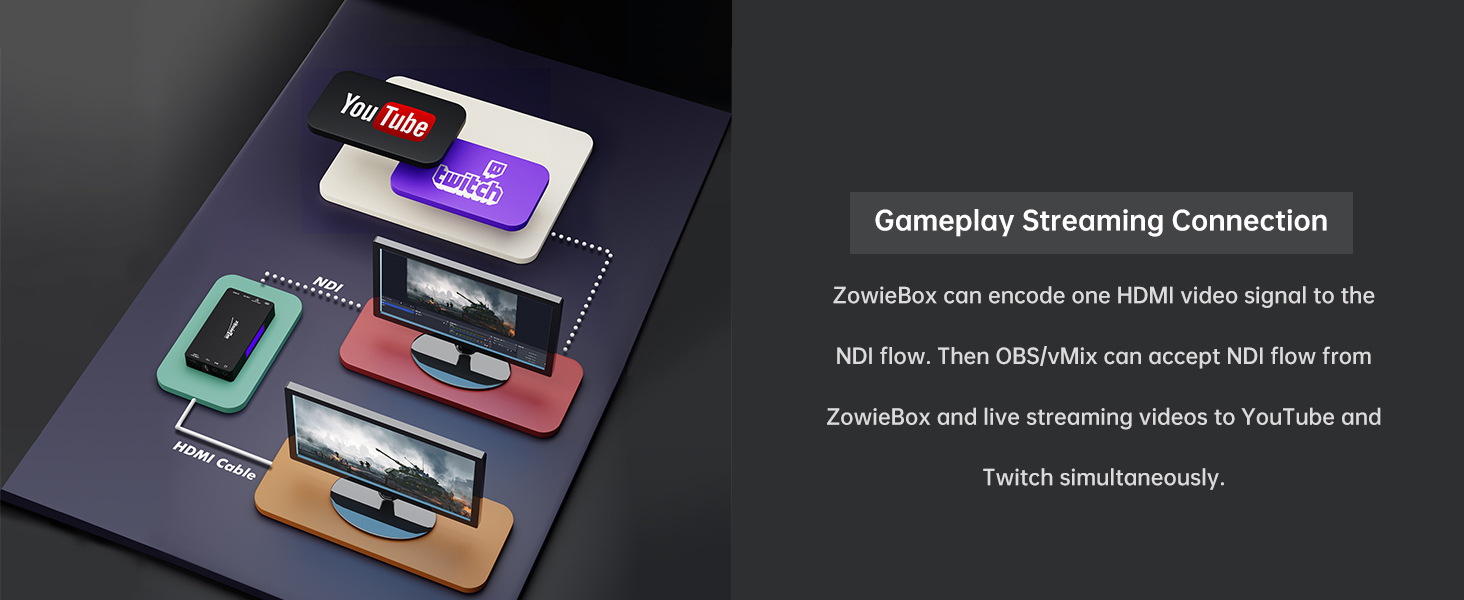

NDI|HX3 Converter: It can encode a HDMI signal to NDI|HX3/HX2/HX. The NDI technology enables ZowieBox to stream gameplay from home to global e-sports championship via OBS/vMix in real time at very low delay but high definition.
Convenient Use at Anywhere: ZowieBox supports PoE(100 meters) or being powered by USB-C chargers such as power banks and DC to USB-C adapters. It can also power external equipments like PTZ cameras by DC out and be mounted on SLR or standard tripod.
All-around Configuration: It can be adjusted through web UI by PC/phone/pad to control PTZ cameras connected, Tally light, video/audio, OSD, work mode, stream, network and system. Users can see the preview video and overall dashboard on the web UI.
